Includes 35 products in one complete kit
One click and done! You can now click once for your new sprint car chassis and get everything Smith Ti makes to build a sprint car. This kit is one of a kind – everything is pre-assembled with 100% attention to details. It comes with all the hardware needed for simple installation.
This complete deluxe kit comes only as listed with no substitutions or edits. Kit options include a customized bolt kit.

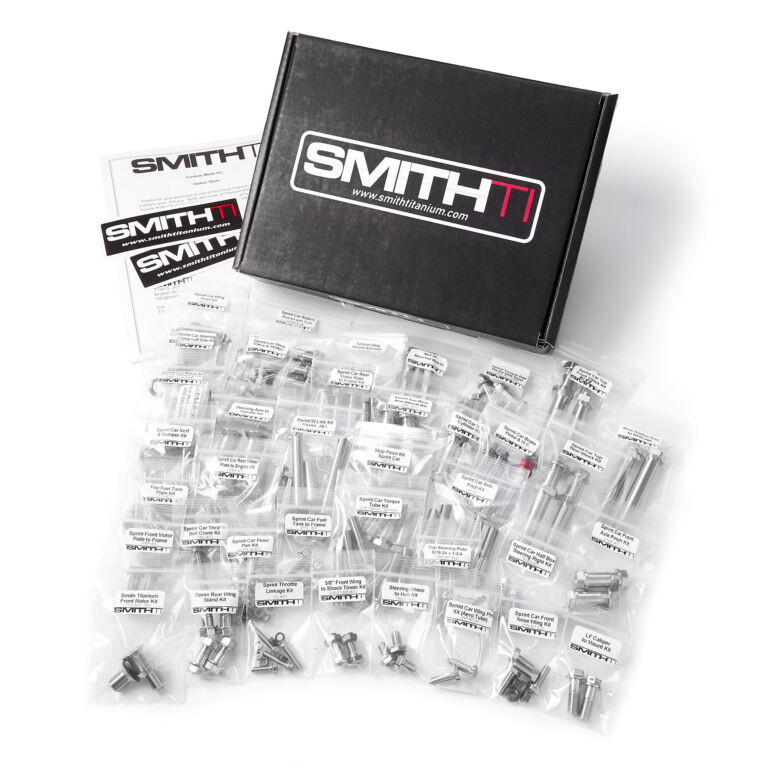

Custom bolt kit for your car

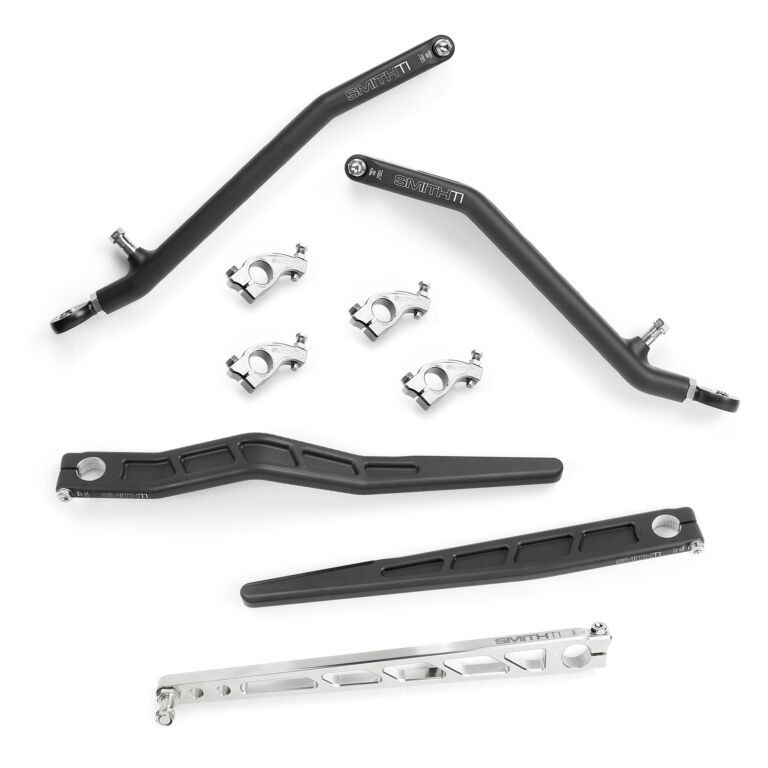

Aluminum torsion arms, titanium pitman arm and titanium torsion stops (complete with all studs and hardware)
complete with 7075 rod end, straps and hardware needed
includes front hubs with socket, steering arms and spindles, king pin assembly and rod ends with titanium jam nuts (front axle not included)
Comes complete with hardware
Lightest throttle pedal at the track.

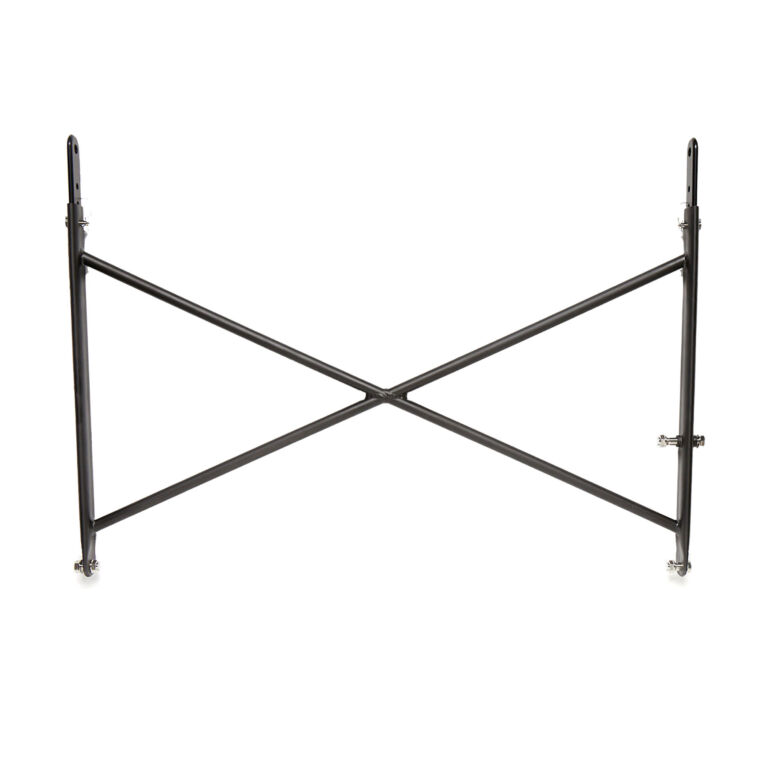

Titanium black ceramic coated aero tube wing tree (hardware included)
Titanium black ceramic coated rock screen and clamps

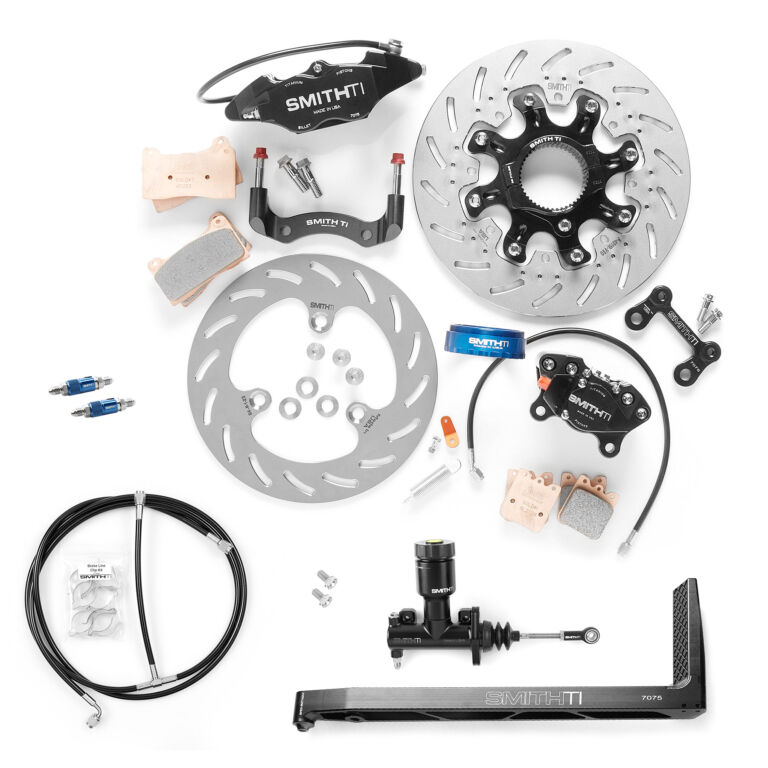

Complete brake assembly including titanium brake rotors, master cylinder, brake pedal, brake lines and 2 quick disconnects
Machined and assembled with pride in the United States with entirely USA-sourced materials.
Download and fill out our Bolt Kit Build Sheet to customize your bolt kit. Email your completed form to
After we receive your completed bolt kit form you can order your complete deluxe kit using the Add to cart button below.
Part # | Part Description |
---|---|
AXLE-SPA-SPR | Sprint Car Adjustable Rear Brake Hub Safety Spacer |
BPED-SMTI | Smith Titanium Brake Pedal |
CBS-SM-SPR-N20-RM | Complete Titanium Brake System with Smith Titanium NEW vented technology rotors, brake calipers with carbon raptor coated pistons and brake lines (see separate sheet for contents) - RADIAL MOUNT CALIPER (**add $50 for 2 piece vented rotor**) |
CFC-WL | Carbon Fiber Cover for W-link |
CUST-KIT | Custom Titanium Bolt Kit (**approximate cost**) |
FH-SPR-MID-SET | Set of Sprint Car or Midget Front Hubs with titanium studs and nuts, bearings, seals, and ceramic coated flat black |
FRT-SKT | Smith Ti Front Hub Socket will fit Sprint, Midget or Micro Sprint |
HH-312-24-625-FT-EWF | 5/16 - 24 x 5/8 fully threaded hex head bolt with extended washer face ..uses 1/2 wrench..grade 5 titanium..for Smith Ti master cylinder mounting hardware (x's 2) |
HH-BLCW-312-18-1000-KIT | Beadlock with Captive Washer Kit ..16) 5/16 - 18 x 1 hex head bolt with captive washer per kit |
KP-STL-SPR-DLC | 4140 Steel DLC coated, heat treated with cap (x's 2) |
KP-WASHER-SPR | Sprint Car spindle thrust bearing spacer (x's 2) |
MC-SMTI-0875-SPR-MO | Smith Titanium 7/8 bore sprint car master cylinder with billet reservoir and aluminum rod end |
QD-T | Set of Titanium Quick Disconnects (female and male ends) |
RE-625-7075 | 7075 aluminum rod end with 5/8 thread and 3/8 hole - non-swivel |
RE-AML-500-625 | 1/2 x 5/8-18 Male Black 7075 Aluminum 1 Piece PTFE lined Sprint & Midget Rod End ..Left Hand Threads (x's 5) |
RE-AMR-500-625 | 1/2 x 5/8-18 Male Black 7075 Aluminum 1 Piece PTFE lined Sprint & Midget Rod End ..Right Hand Threads (x's 5) |
RE-JMXR-500-625 | 1/2 x 5/8-18 Black Oxide Heat Treated Chromoly 3 Piece Male PTFE Lined Rod End For Sprint Car Rear Torsion Arm (x's 2) |
RE-XML-500-625 | 1/2 x 5/8-18 Male Black 4130 Chromoly 1 Piece PTFE lined Sprint & Midget Rod End ..Left Hand Threads (x's 3) |
RE-XMR-500-625 | 1/2 x 5/8-18 Male Black 4130 Chromoly 1 Piece PTFE lined Sprint & Midget Rod End..Right Hand Threads (x's 3) |
SPR-BRDCG-RH-LH | 1 set of Sprint Car Birdcages (right and left sides) made from 7075 billet aluminum ..Come standard with titanium bolts in the top and a special stainless steel bolt for the bottom (excellent wear) |
SPR-SPIND-SA-KIT-DECKED-OUT | Sprint Car Complete Steering Arm and Spindle Kit - comes all bolted together ..inludes: pair of spindles, pair of steering arms, hi-lok studs with nuts, and steering arm to spindle bolt kit |
ST-SPIN-NUT | Smith Titanium Midget and Sprint Car Spindle Nut |
TA-AL-FL-S | Sprint Car 7075 Billet Aluminum Left Front Torsion Arm S-Bend maxed out with pinch bolts and black ceramic coating |
TA-AL-FR | Sprint Car 7075 Billet Aluminum Right Front Torsion Arm - maxed out with pinch bolts and black ceramic coating |
TA-AL-RL-3250-MO | Sprint Car 7075 Billet Aluminum Left Rear Torsion Arm - 3-1/4 Offset - maxed out with rod end and bolt and black ceramic coating |
TA-AL-RR-5125-MO | Sprint Car 7075 Billet Aluminum Right Rear Torsion Arm – 5-1/8 Offset - maxed out with rod end and bolts and black ceramic coating |
THR-PED-TI | Titanium Throttle Pedal |
TI-PA-SPR-WS | Sprint Car Titanium Pitman Arm (10-11 inch)..WITH 1/2 - 20 x 3.475 ONS |
TJMN-625-18-W562-RH (LH) | 5/8 - 18 titanium jam nut for rod ends (x's16) (8 right hand & 8 left hand) |
TJMN-625-18 | 5/8 - 18 titanium jam nut for rear arms (7/8 hex size) (x's 2) |
TRS-BO | Titanium Rock Screen for Sprint Car Blacked Out |
TRS-CL | Titanium Rock Screen Clamps (set of 2) |
TTSP-WB | Titanium Torsion Stop with bolts (x's 4) |
TWT-DO | Decked out titanium wing tree for sprint cars..Aero Tube, Titanium 6-4, 7075 internal sliders,..PLUS: New flat black ceramic coating, Ti bolts, and our exclusive wing pins...Adjustment is 16 to 19 (3/4 increments) (also comes in natural Ti) |
WLWS-13625-375-N21 | 13-5/8 (center to center) titanium w-link (13-1/4 centerline) with straps ..NEW for 2021with billet ends |
Machined and assembled with pride in the United States with entirely USA-sourced materials.
Smith Titanium produces high quality, precision engineered titanium hardware for sprints, midgets, micros & dirt late models.
