Description

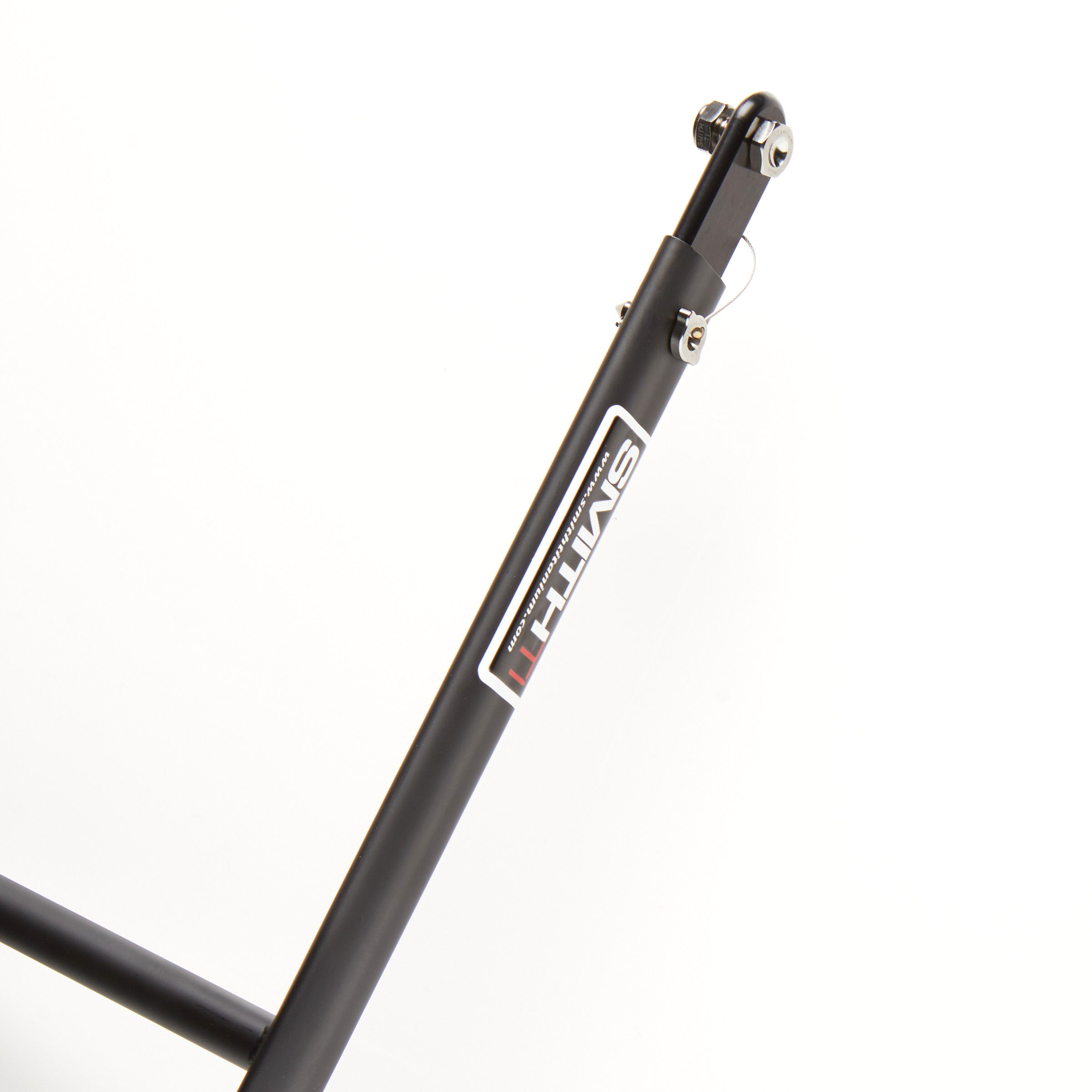

Titanium Rear Wing Tree for Micro Sprint

Aero Tube, Titanium 6ALV4, 7075 aluminum internal sliders

Titanium Rear Wing Tree for Micro Sprint Options Include:

• Decked Out with Ti bolts, and our exclusive wing pins
• Maxed Out with flat black ceramic coating, Ti bolts, and our exclusive wing pins.
• Bare (aluminum height adjuster inserts only NO HARDWARE)

Decked Out & Maxed Out assembly comes with:

• 1) Aero-tube wing pin kit (WP-KIT-A)
• 2) 5/16-24 x 3/4″ Hex Head (wing straps to chassis)
• 2) 5/16-24 x 5/8″ Hex Head (wing tree to wing)
• 1) 5/16-24 x 1-5/8″ Hex Head (wing adjuster to wing tree)
• 5) 5/16-24 Titanium Nylock Nuts (.330 tall)

Wing Tree Measurements:

Top: 24-3/4″ Inside to Inside of Tree / 25″ Outside to Outside
Bottom: 24-1/2″ Inside to Inside of the Aluminum Straps / 25″ Outside to Outside
Height Adjustment: 12-3/4″ Minimum Height
17-1/4″ Maximum Height
3/4″ Adjustment increments
